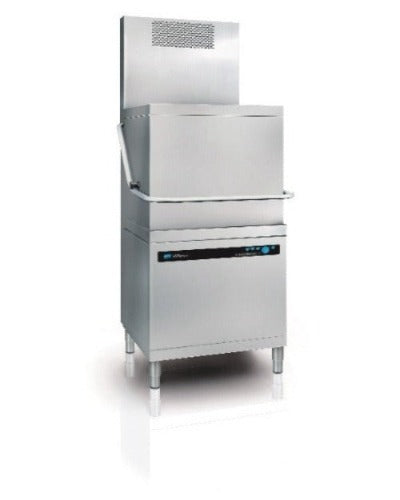

Meiko Upster H500 M2 AirConcept Passthrough Dishwasher
The UPster® H 500 M2 AirConcept is an innovative air management dishwasher reducing ambient emissions and improving the indoor climate which includes a sophisticated method of exhaust heat recovery, making the wash-up area an extremely pleasant environment to work in. Hot exhaust air is returned to the water circuit to supply energy, reducing the machine’s power consumption and achieving substantial energy and cost savings.
Features:
- Uncomplicated operation with automatic program start: simply press down the hood grip to start the program
- Brilliant rinsing results and always a clean wash chamber through the intuitive self-cleaning program and AktivPlus water filter system
- Remains cool and quiet outside by double-walled construction with insulation of the hood
- Easy to use with digital temperature display for wash and final rinse temperatures, and permanent temperature control. Its intuitive blue operating concept eliminates risk of operator error.
- High operating reliability due to leak detection in base tray
- Reliability and longevity with stainless steel wash and rinse arms and stainless steel rear wall cladding
Benefits:
- Centralised vapour management
- Keeps steam away from machine operators
- Built-in condensate drain
- Steam extraction initiated by dishwashing programme
- Continues running for specified time after programme finishes
- No filter technology = maintenance free
Additional information:
Rack dimension: 500 x 500 mm bis 540 x 500 mm
Entry height: 440 mm
Dimensions: (W x Hmin x D) 635 ( 687) x 1520 x 750 (850) mm
Programme cycle: 90 / 150 / 210 s
Rack capacity/h (theoretical): 40 / 24 / 17 racks/h
Tank filling: 22,0 l
Rinse water volume: 2,6 liters/cycle
Total connected load: 10,6 kW
Local fuse protection: 20 A
Boiler heating: 7.50 kW / 10.82 A
Tank heating: 2.00 kW / 8.70 A
Wash pump: 0.75 kW / 4.60 A
Protection class of the machine: IP X4
Warranty: 12 months
